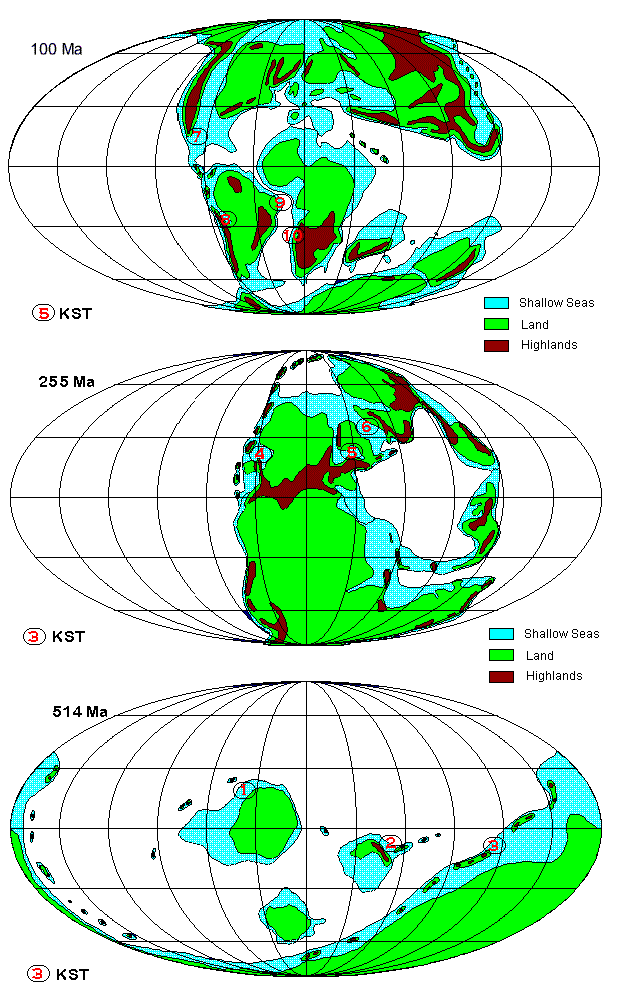

Figure 3

Selected Kuperschiefer Type Deposits in various Paleogeographic settings in Time

Paleogeography from software program PCME (Paleo-Continental Map Editor) Version 3.0 edu.
Copyright 1997 C. R. Scotese. EG98 figure 3

100 Ma Cretaceous

7 = Kirkham (1989 p. 20) 15: Cupido Formation
8 = Kirkham (1989 p. 20) 14: Juramento and Cerro del Plomo
9 = Kirkham (1989 p. 20) 11: Araripe
10 = Kirkham (1989 p. 20) 9: Zenza and 10: Cachoeiras de Binga and English








255 Ma Permian

4 = Kirkham (1989 p. 17) 23: Creta and Mangum; 27: Hacks Canyon; 29: Sedgwick and Sumner countries
5 = Kirkham (1989 p. 17) Kuperschiefer 3: Mansfeld-Sangerhausen and Spremberg; and 6: Lubin
6 = Kirkham (1989 p. 17) 13: Kirov







515 Ma Cambrian

1 = Kirkham (1989 p. 14) 28: Hottal Lake
2 = Kirkham (1989 p. 14) 5:Velmo River; 6: Kan-Taseyeva Basin; 7: Lamo River and Irkineeva River; 8: Kataga-Talass Alatau; 9: Sayan region; and 10: Bryansk Rapids
3 = Kirkham (1989 p. 14) 13: Aynak, Darband, and Jawkhar
